ZEN swimming pool grating

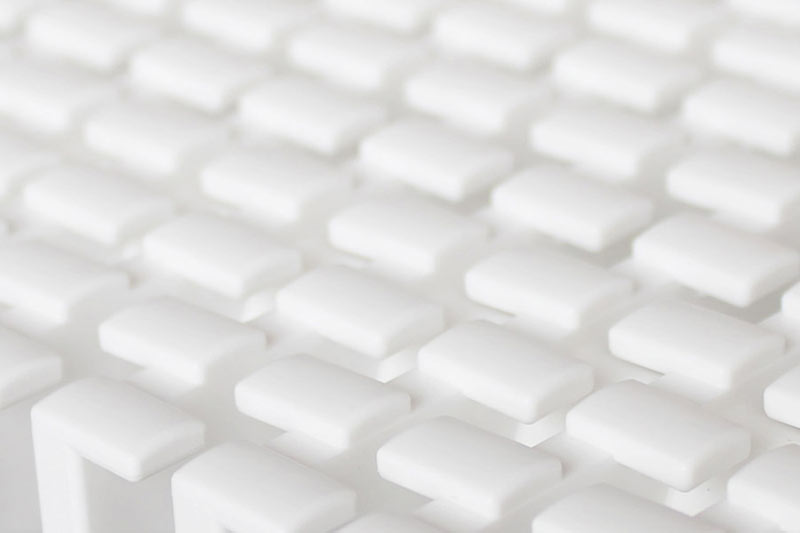

ZEN swimming pool grating for overflow channels designed for superior drainage capability comparable to traditional systems. It's unique design will be kind to your feet, easily maintained, with high anti-slip properties. Additional middle click-connection adds to simplicity of installation and stability. Made from high impact PP-UV, resistant to abrasion and UV rays with light stabilized colors. Available in 1m fixed or flexible segments. 90° and custom made solutions available (ask for availability). Available in 22/25 mm height and multiple widths.

Technical details

Material
Made from high impact PP-UV with abrasion resistance.

UV & Chemical Resistance
UV resistant material with light stabilized colors.
Resistant to chlorine, sea water and common cleaning agents.

Hygienic certificate
No harmfull substances released into water.

High anti-slip properties
Anti-slip properties certified according to DIN 51097 class C.
Parallel 34°, Perpendicular 33°.

Middle click-connection
Middle click-connection eliminates any need for additional cable or rod connections. Click-connection will also be useful to adjust the length of a segment or replace one or more elements in a few minutes.

Available measures
Height 22/25 mm in 195mm, 245mm, 295mm and 335mm width.
Non-standard widths available per request.
Note: optimal channel width = grating width + 5mm.

Available segment types
Fixed segment (1m)
Flexible segment (1m)
90° angle
Custom made angle (ask for availability)

Available colors
Standard color: White RAL 9016.
Non-standard colors available: Beige RAL 1013, Blue RAL 5012, Grey RAL 7046.

Contact us for technical support, technical documentation and additional information.
